GRL 1115 Cart Lifter

Commercial and Industrial ProductsMobile Refuse Products

Cart Compatibility

Automated, Domestic, Drums, European, Pocketed

Mounting Height

45

Application Types

Rear Load No Kick Bar

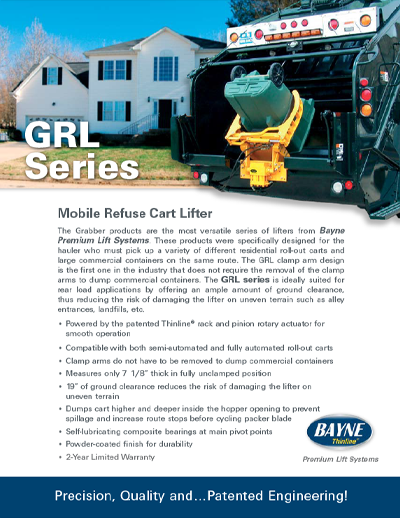

GRL 1115 Series Cart Lifter

The Grabber products are the most versatile series of lifters from Bayne Premium Lift Systems. These products were specifically designed for the hauler who must pick up a variety of different residential roll-out carts and large commercial containers on the same route. The GRL clamp arm design is the first one in the industry that does not require the removal of the clamp arms to dump commercial containers. The GRL series is ideally suited for rear load applications by offering an ample amount of ground clearance, thus reducing the risk of damaging the lifter on uneven terrain such as alley entrances, landfills, etc.

  • Powered by the patented Thinline® rack-and-pinion rotary actuator for
    smooth operation
  • Compatible with both semi-automated and fully automated roll-out carts
  • Clamp arms do not have to be removed to dump commercial containers
  • Measures only 7 1/8” thick in fully unclamped position
  • 19” of ground clearance reduces the risk of damaging the lifter on
    uneven terrain
  • Dumps cart higher and deeper inside the hopper opening to prevent
    spillage and increase route stops before cycling packer panel
  • Self-lubricating composite bearings at main pivot points
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility

    ANSI Z245.60-1996 Type B Carts (domestic style 2-bar)
    ANSI Z245.60-1996 Type C Carts (European style)
    ANSI Z245.60-1996 Type D Carts (pocketed style)
    ANSI Z245.60-1996 Type G Carts (automated style)
    Standard size 30 and 55 gallon drums
  • Lift Capacity

    400 lbs @ 1800 psi
  • Hydraulic Pressures

    Working Pressure – 1800 psi
    Maximum Pressure – 2500 psi
  • Hydraulic Flow:

    2.0 – 2.5 gpm
  • Cycle Time

    10 - 12 Seconds
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    • Tap-In-Kit
    • Mounting Plate Kit for Bolt-On Application
    • Commercial Container Bumper Kit
