GRL 1110 Cart Lifter

Commercial and Industrial ProductsMobile Refuse Products

Cart Compatibility

Automated, Domestic, Drums, European, Pocketed

Mounting Height


Application Types

Rear Load With Kick Bar, Tipper Bar

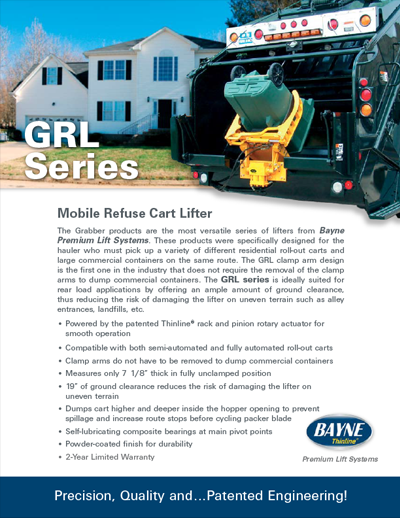

Bayne GRL Series Cart Lifter

GRL 1110 Series Cart Lifter

The Grabber products, or GRL cart lifters, are the most versatile series of cart lifters from Bayne Premium Lift Systems. These cart lifters, or cart tippers, were specifically designed for the refuse hauler who must pick up a variety of residential roll-out garbage carts and large commercial waste containers on the same route. The GRL clamp arm design is the first one in the industry that does not require removal of the clamp arms to dump commercial containers. The GRL series is ideally suited for rear load applications by offering an ample amount of ground clearance, thus reducing the risk of damaging the cart lifter on uneven terrain such as alley entrances, landfills, etc.

GRL 1110 Series Features

  • Powered by the patented Thinline® rack-and-pinion rotary actuator for smooth operation
  • Compatible with semi-automated and fully automated roll-out carts
  • Clamp arms do not have to be removed to dump commercial containers
  • Measures only 7-1/8″ thick in fully unclamped position
  • 19″ of ground clearance reduces the risk of damaging the lifter on uneven terrain
  • Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer blade
  • Self-lubricating composite bearings at main pivot points
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility:

    ANSI Z245.60-1996 Type B Carts (domestic style 2-bar)
    ANSI Z245.60-1996 Type C Carts (European style)
    ANSI Z245.60-1996 Type D Carts (pocketed style)
    ANSI Z245.60-1996 Type G Carts (automated style)
    Standard size 30 and 55 gallon drums
  • Lift Capacity

    400 lbs @ 1800 psi
  • Hydraulic Pressures

    Working Pressure – 1800 psi
    Maximum Pressure – 2500 psi
  • Hydraulic Flow

    2.0 – 2.5 gpm
  • Cycle Time

    10 – 12 seconds
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    • Tap-In-Kit
    • Mounting Plate Kit for Bolt-On Application
    • Commercial Container Bumper Kit
