ETL 208 48 Roller Bearings Series Cart Tipper

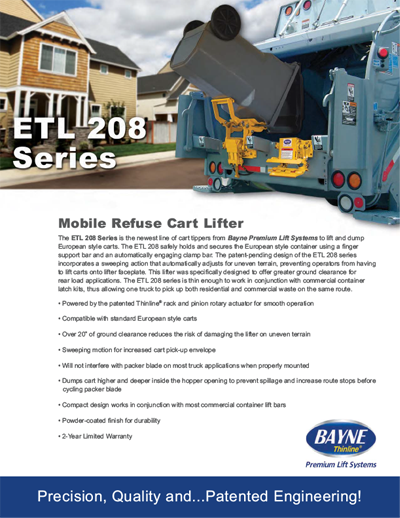

The ETL 208 series is the newest line of mobile refuse cart tippers from Bayne Premium Lift Systems, designed to lift and dump European style carts. The ETL 208 cart tipper, or cart lifter, safely holds and secures the European style container using a finger support bar and an automatically engaging clamp bar. The patent-pending design of the ETL 208 series incorporates a sweeping action that automatically adjusts for uneven terrain, preventing garbage truck operators from having to lift carts onto the lifter faceplate. This cart lifter was specifically designed to offer greater ground clearance for rear load applications. The ETL 208 series is thin enough to work in conjunction with commercial container latch kits, thus allowing one refuse truck to pick up both residential and commercial waste on the same route.

ETL 208 48 Roller Bearings series Features

  • Powered by the patented Thinline® rack and pinion rotary actuator for smooth operation
  • Compatible with standard European style carts
  • Sweeping motion allows for an increased cart pick-up envelope
  • Will not interfere with packer blade on most truck applications when properly mounted
  • Thinline® design works in conjunction with most commercial container latch kits
  • Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer blade
  • Over 20″ of ground clearance reduces risk of damaging the lifter on uneven terrain
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility

    ANSI Z245.60-2008 Type C Containers (European Style Carts)
  • Lift Capacity

    400 lbs @ 1800 psi
  • Hydraulic Pressures

    Maximum Pressure - 3000 psi
  • Hydraulic Flow

    2.0 - 2.5 gpm
  • Cycle Time

    8 - 10 seconds
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    • Hydraulic Tap-In Kit
    • Mounting Plate Kit for Bolt-On Applications
    • Commercial Container Bumper Kit
