BTL 208 20 RHK Series Cart Lifter

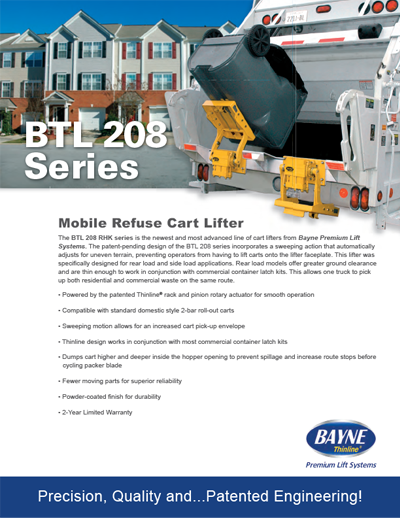

The BTL 208 RHK series is the newest and most advanced line of cart lifters from Bayne Premium Lift Systems. The patent-pending design of the BTL 208 series incorporates a sweeping action that automatically adjusts for uneven terrain, preventing operators from having to lift carts onto the lifter faceplate. This lifter was specifically designed for rear load and side load applications. Rear load models offer greater ground clearance and are thin enough to work in conjunction with commercial container latch kits. This allows one truck to pick up both residential and commercial waste on the same route.

  • Powered by the patented Thinline® rack-and-pinion actuator for smooth operation
  • Compatible with standard domestic style 2-bar roll-out carts
  • Sweeping motion allows for an increased cart pick-up envelope
  • Thinline design works in conjunction with most commercial container latch kits
  • Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer panel
  • Fewer moving parts for superior reliability
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility

    ANSI Z 245.60-2008 Type B Carts (domestic style 2-bar)
  • Lift Capacity

    400 lbs. @ 1800 psi (12" arms)
    400 lbs. @ 2200 psi (20" arms)
  • Hydraulic Pressures

    Maximum Pressure - 3000 psi
  • Hydraulic Flow

    2.0 - 2.5 gpm
  • Cycle Time

    8 - 10 seconds
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    • Hydraulic Tap-In Kit
    • Mounting Plate Kit for Bolt-On Applications
    • Commercial Container Bumper Kit
