TL 1116 Series Cart Lifter

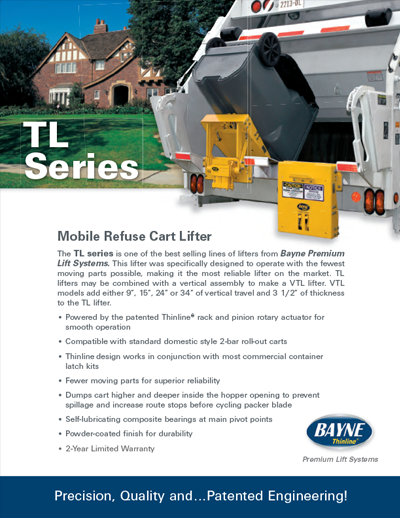

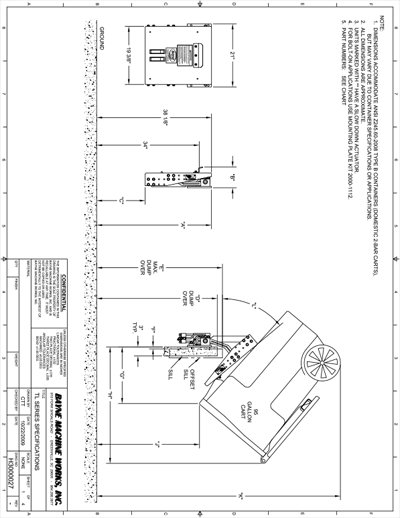

The TL series is one of the best-selling lines of lifters from Bayne Premium Lift Systems. This cart lifter, or cart tipper was specifically designed to operate with the fewest moving parts possible, making it the most reliable lifter on the market. TL cart lifters can be used with rear-loading or side-loading garbage trucks and may be combined with a vertical assembly to make a VTL lifter. VTL models add 9″, 15″, 24″ or 34″ of vertical travel and 3 1/2″ of thickness to the TL lifter.

TL Series Feature

  • Powered by the patented Thinline® rack-and-pinion rotary actuator for smooth operation
  • Compatible with standard domestic style 2-bar roll-out carts
  • Thinline design works in conjunction with most commercial container latch kits
  • Fewer moving parts for superior reliability
  • Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer panel
  • Self-lubricating composite bearings at main pivot points
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility

    ANSI Z 245.60-2006 Type B Carts (domestic style 2-bar)
  • Lift Capacity

    1100 Actuator: 400 lbs @ 1800 psi (16”, 20”, 24” arms)
    300 lbs @ 1800 psi (28”, 32”, 34” arms)
    2200 Actuator: 700 lbs @ 1800 psi (16”, 20”, 24” arms)
    500 lbs @ 1800 psi (28”, 32”, 34” arms)
  • Hydraulic Pressures

    Working Pressure – 1800 psi
    Maximum Pressure – 2500 psi
  • Hydraulic Flow

    2.0 – 2.5 gpm
  • Cycle Time

    6 – 8 seconds (lifter only)
    8 – 10 seconds (with 9” vertical)
    10 – 12 seconds (with 15” vertical)
    15 – 25 seconds (with 24” or 34” vertical)
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    Mounting Plate Kit for Bolt-On Application
    Commercial Container Bumper Kit
