Revolution HD

Commercial and Industrial ProductsMobile Refuse Products

Cart Compatibility

Domestic

Mounting Height

35-41

Application Types

Rear Load With Kick Bar

Revolution HD

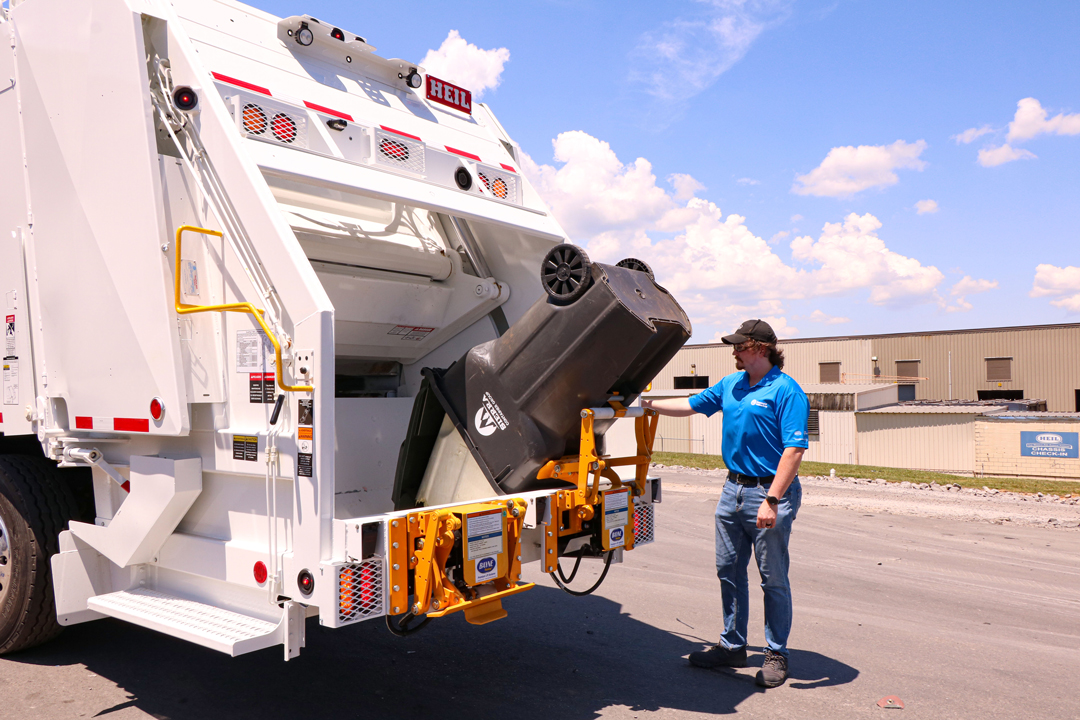

The Revolution® is an advanced modern cart lifter from Bayne Premium Lift Systems. This patented design incorporates a sweeping action that automatically adjusts for uneven terrain, preventing operators from having to lift carts onto the lift plate. The Revolution was specifically designed to offer the most ground clearance possible for rear load applications. This feature makes it a perfect choice for rear load applications with commercial container lift bars and provides the versatility to pick up both residential and commercial waste on the same route.

  • Powered by the patented Thinline® rack-and-pinion rotary actuator for smooth operation
  • Compatible with standard domestic style 2-bar roll-out carts
  • Sweeping motion allows for an increased cart pick-up envelope
  • Over 22” of ground clearance
  • Compact design works in conjunction with most commercial container lift bars
  • Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer panel
  • Self-lubricating composite bearings at main pivot points
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility

    ANSI Z 245.60-2008 Type B Carts (domestic style 2-bar)
  • Lift Capacity

    400 lbs @ 1800 psi
  • Hydraulic Pressures

    Maximum Pressure - 3000 psi
  • Hydraulic Flow

    2.0 - 2.5 gpm
  • Cycle Time

    8 - 10 seconds
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    • Tap-In-Kit
    • Mounting Plate Kit for Bolt-On Application
    • Commercial Container Bumper Kit

Request Product Info













    Revolution HD SeriesHow it Works

    This patent-pending design incorporates a sweeping action that automatically adjusts for uneven terrain, preventing operators from having to lift carts onto the lift plate. The Revolution was specifically designed to offer the most ground clearance possible for rear load applications.
