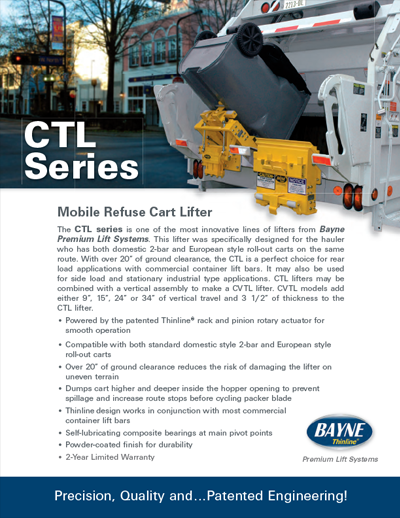

CTL 1120 Series Refuse Lifter

The CTL series is one of the most innovative lines of mobile refuse lifters from Bayne Premium Lift Systems. This cart lifter, or cart tipper, was specifically designed for the hauler who has both domestic 2-bar and European style roll-out carts on the same route. With over 20″ of ground clearance, the CTL is the perfect mobile refuse lifter for rear load applications with commercial container lift bars. It may also be used for side load and stationary industrial type applications. CTL cart lifters may be combined with a vertical assembly to make a CVTL lifter. CVTL models add 9″, 15″, 24″ or 34″ of vertical travel and 3-1/2″ of thickness to the CTL lifter.

CTL 1120 series Features

  • Powered by the patented Thinline® rack and pinion rotary actuator for smooth operation
  • Compatible with both standard domestic style 2-bar and European style roll-out carts
  • Over 20″ of ground clearance reduces the risk of damaging the lifter on uneven terrain
  • Thinline® design works in conjunction with most commercial container lift bars
  • Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer blade
  • Self-lubricating composite bearings at main pivot points
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility

    ANSI Z245.60-1996 Type B Containers (domestic 2-bar carts)
    ANSI Z245.60-1996 Type C Containers (European style)
  • Lift Capacity

    400 lbs @ 1800 psi (with 1100 Actuator)
    700 lbs @ 1800 psi (with 2200 Actuator)
  • Hydraulic Pressure

    Working Pressure - 1800 psi Maximum Pressure - 2500 psi
  • Hydraulic Flow

    2.0 - 2.5 gpm
  • Cycle Time

    6 - 8 seconds (lifter only) 8 - 10 seconds (with 9" vertical) 10 - 12 seconds (with 15" vertical) 15 - 25 seconds (with 24" or 34" vertical)
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    • Tap-In-Kit
    • Mounting Plate Kit for Bolt-On Application
    • Commercial Container Bumper Kit
