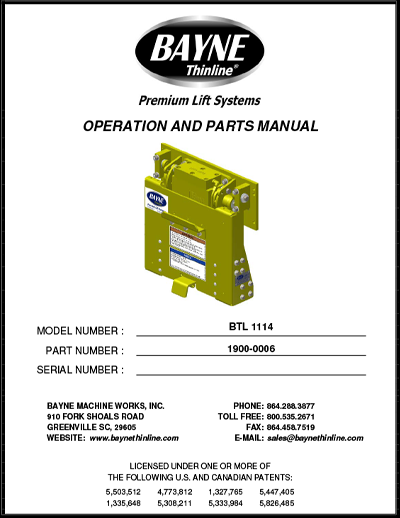

BTL Series 1900-0006 BTL 1114

Commercial and Industrial ProductsMobile Refuse Products

Cart Compatibility

Mounting Height

BTL Series Cart Lifters

The BTL series is one of the bestselling lines of garbage truck cart lifters from Bayne Premium Lift Systems. This cart lifter, or cart tipper, was specifically designed to offer greater ground clearance for rear load applications, thus reducing the risk of damaging the lifter on uneven terrain such as alley entrances, landfills, etc. This additional ground clearance makes the BTL a perfect choice for rear load applications with commercial container lift bars. BTL cart lifters maybe combined with a vertical assembly to make a VBTL lifter. VBTL models add 9″ of vertical travel and 3 1/2″ of thickness to the BTL lifter.

BTL Series Features

  • Powered by the patented Thinline® rack and pinion rotary actuator for smooth operation
  • Compatible with standard domestic style 2-bar carts
  • Over 21″ of ground clearance
  • Thinline® design works in conjunction with most commercial container lift bars
  • Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer blade
  • Self-lubricating composite bearings at main pivot points
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility

    ANSI Z 245.60-2008 Type B Carts (domestic style 2-bar)
  • Lift Capacity

    400 lbs @ 1800 psi
  • Hydraulic Pressure

    Maximum Pressure - 3000 psi (lifter only)
    Maximum Pressure - 2500 psi (with vertical)
  • Hydraulic Flow

    2.0 - 2.5 gpm
  • Cycle Time

    6 - 8 seconds (lifter only) 8 - 10 seconds (with 9" vertical)
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    • Tap-In-Kit
    • Mounting Plate Kit for Bolt-On Application
    • Commercial Container Bumper Kit
