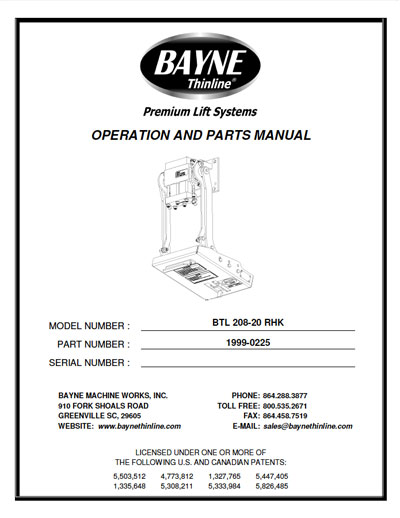

BTL 208 20 RHK 1999-0225

Commercial and Industrial ProductsMobile Refuse Products

Cart Compatibility

Domestic

Mounting Height

40-43

Application Types

Side Load

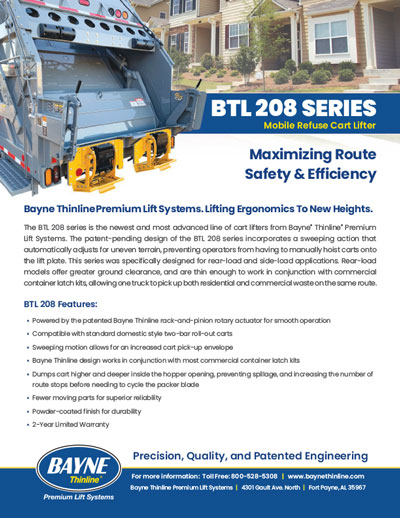

BTL 208 Series Cart Lifter

The BTL 208 series is one of the newest and most advanced lines of refuse collection vehicle cart lifters from Bayne Premium Lift Systems. The patent-pending design of the BTL 208 series incorporates a sweeping action that automatically adjusts for uneven terrain, preventing operators from having to lift carts onto the lifter faceplate. This cart lifter, or cart tipper, was specifically designed for rear- load applications. It offers greater ground clearance and is thin enough to work in conjunction with commercial container latch kits. This enables one garbage truck to pick up both residential and commercial waste on the same route.

BLT 208 Series Features

  • Powered by the patented Thinline® rack-and-pinion rotary actuator for smooth operation
  • Compatible with standard domestic style 2-bar roll-out carts
  • Sweeping motion allows for an increased cart pick-up envelope
  • Fewer moving parts for superior reliability
  • Thinline design works in conjunction with most commercial container latch kits
  • Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer panel
  • Powder-coated finish for durability
  • 2-Year Limited Warranty
  • Cart Compatibility

    ANSI Z 245.60-2008 Type B Containers (domestic style 2-bar)
  • Lift Capacity

    400 lbs @ 1800 psi (12" arms)
    400 lbs @ 2200 psi (20" arms)
  • Hydraulic Pressure

    Maximum Pressure - 3000 psi
  • Hydraulic Flow

    2.0 - 2.5 gpm
  • Cycle Time

    8 - 10 Seconds
  • Bearings

    Self-Lubricating Composite Material
  • Actuator

    Patented Thinline® Rack and Pinion Rotary Actuator
  • Finish

    Safety Yellow Powder Coating
  • Options

    • Tap-In-Kit
    • Mounting Plate Kit for Bolt-On Application
    • Commercial Container Bumper Kit
